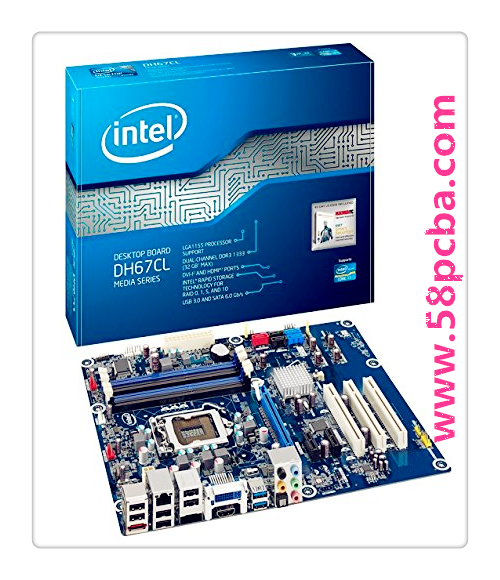

Which PCB Design Software is Used to Build Intel Motherboard?

Time:2019-08-07 18:37:20 Click:

As for the PCB Design Software is used to build Intel Motherboard:


Schematic design—ORCAD;


PCB Layout—Allegro(Cadenc), because this software is powerful, which has a coulpe of advantages in terms of drawing huge PCB.

( BTW, 10 years ago, PADS was also usually used to do PCB layout.)
