What is the differrence between PCB and PCBA?

Time:2017-04-25 10:00:00 Click:

A PCB (Printed Circuit Board) is a board used to electrically connect and mechanically support components using pads, conductive tracks and several other features etched from sheets of copper laminated onto non-conductive substrates. There are various types of PCBs like single sided, double sided or multilayer PCB.

On the other hand, PCBA (Printed Circuit Board Assembly) is the board obtained after all printing solder paste on the PCB and then mounting various components like resistors, ICs (Integrated Circuits), capacitors and any other components  like transformers depending on the application and desired characteristics of the board. A PCBA usually undergoes reflow furnace heating to establish a mechanical connection between the PCB and the components.

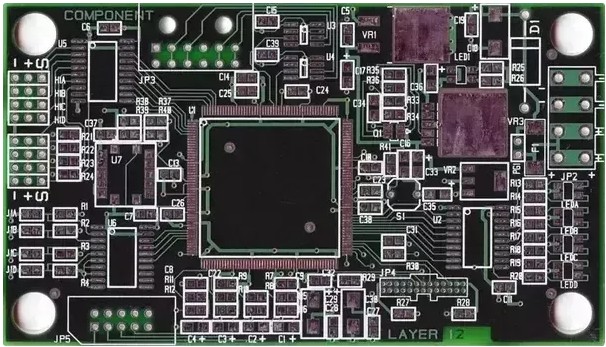

This is a PCB

This is a PCB

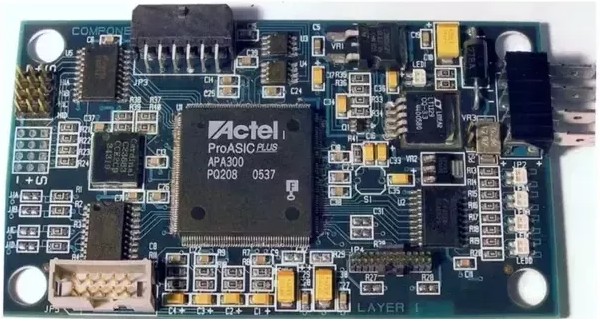

This is the corresponding PCBA, after I mounted the components and soldered it in my toaster oven.

This is the corresponding PCBA
