What is a netlist in PCB?

Time:2019-07-04 14:20:39 Click:

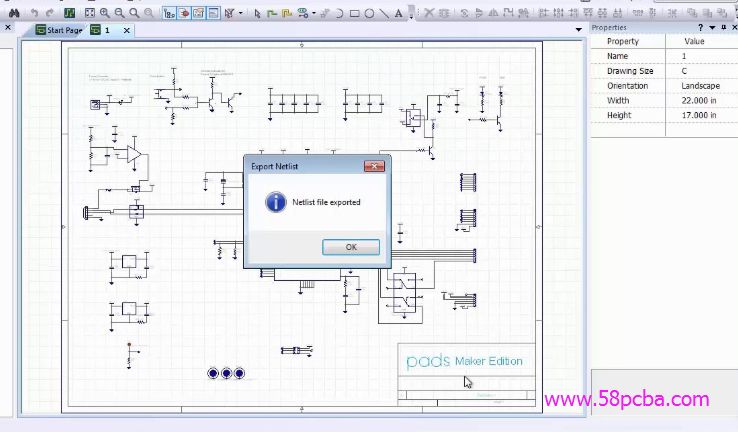

The netlist is generated by the schematic, including PRT ( components package) and NET (signal connection relationship);


Besides, PCB file is also able to output netlist, which is mainly used for comparison.


Furthermore, after PCB file design is completed, we still need to compare the netlist of schematic on account of avoiding possible errors.
