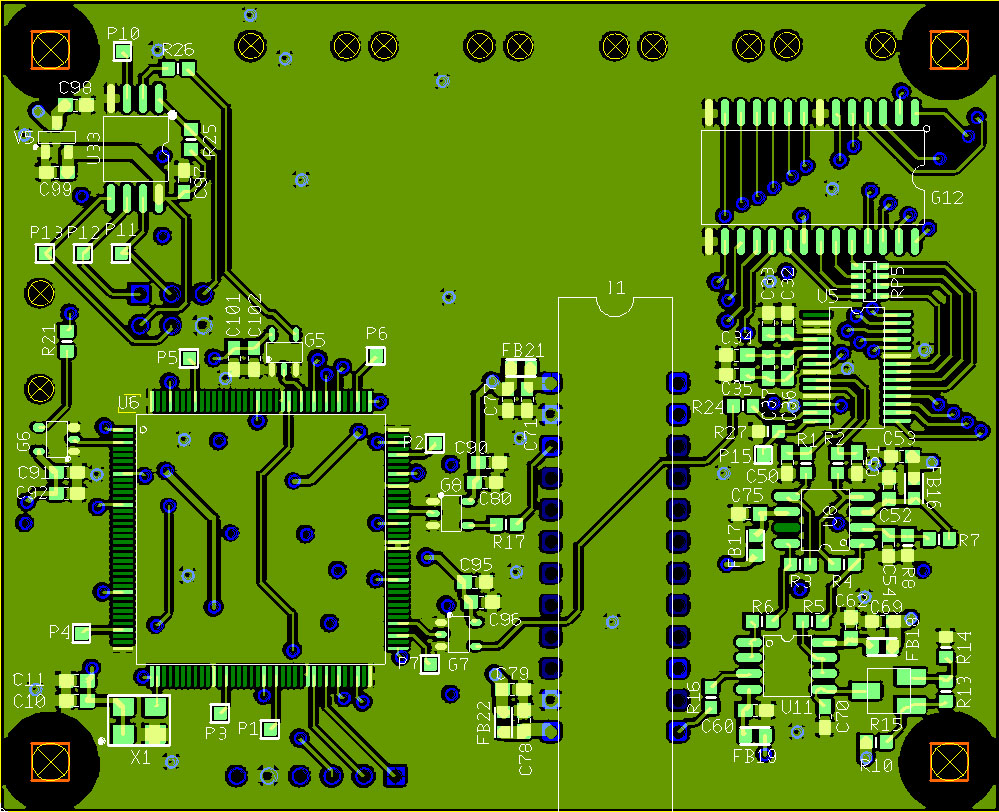

What are the advantages of having a solid ground region on a PCB?

Time:2019-04-19 15:22:54 Click:

A solid ground has a dual function, including increasing current and shielding interference.



PS: In high frequency circuit, if it has high anti-interference requirement which will be used multipurpose grid; While low frequency or large current circuit which will be used complete covering copper.
