How do you accurately measure connector pitch?

Time:2019-03-12 11:12:04 Click:

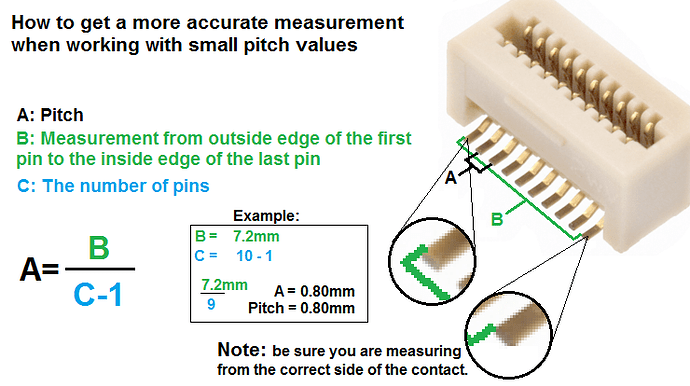

It depends on the shape of the connectors:


1)For the regular connector pitch: (All measured parameters of pitches-pitch’s diameter) / pitch numbers; Pay attention to the measurement error;


2)For irregular connector pitch: Two neighbouring pitches-pitch’s diameter; Pay attention to the measurement error.
