Supplier: Grande Electronics

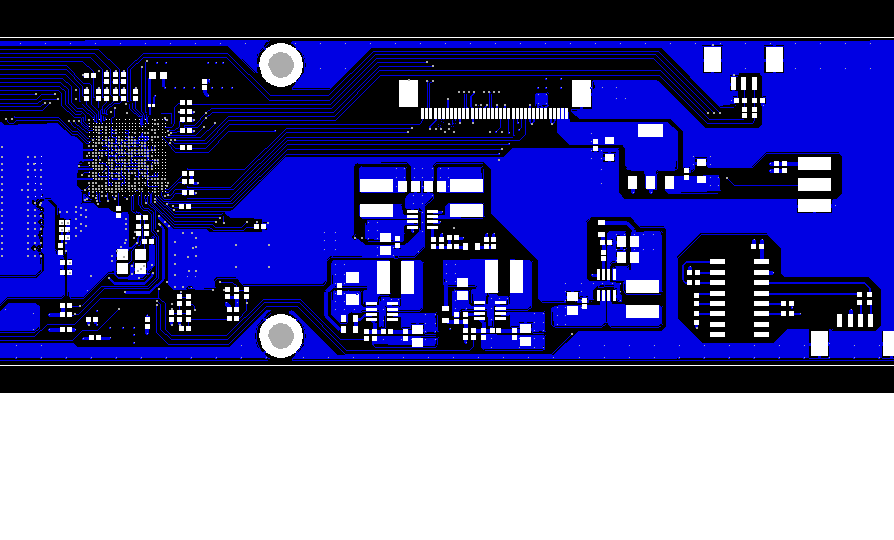

Application: Portable Energy Storage Power Supply 4 Layer PCB Layout - Grande Electronics

Software: PADS
Layers:4

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 8-10 days

【Description】
PCB layout Features：
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication：
Layers: 4
Size: 157*163*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via：8mil
