Bluetooth & Fingerprint Based Door Lock | PCB Design & Layout | PCB Asse

Time:2020-09-15 20:14:16 Click:







Supplier: Shenzhen Grande Electronics
Application: Bluetooth & Fingerprint Based Door Lock | PCB Design & Layout | PCB Assembly

Software: PADS
Layers:6

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 10-12 days



Description

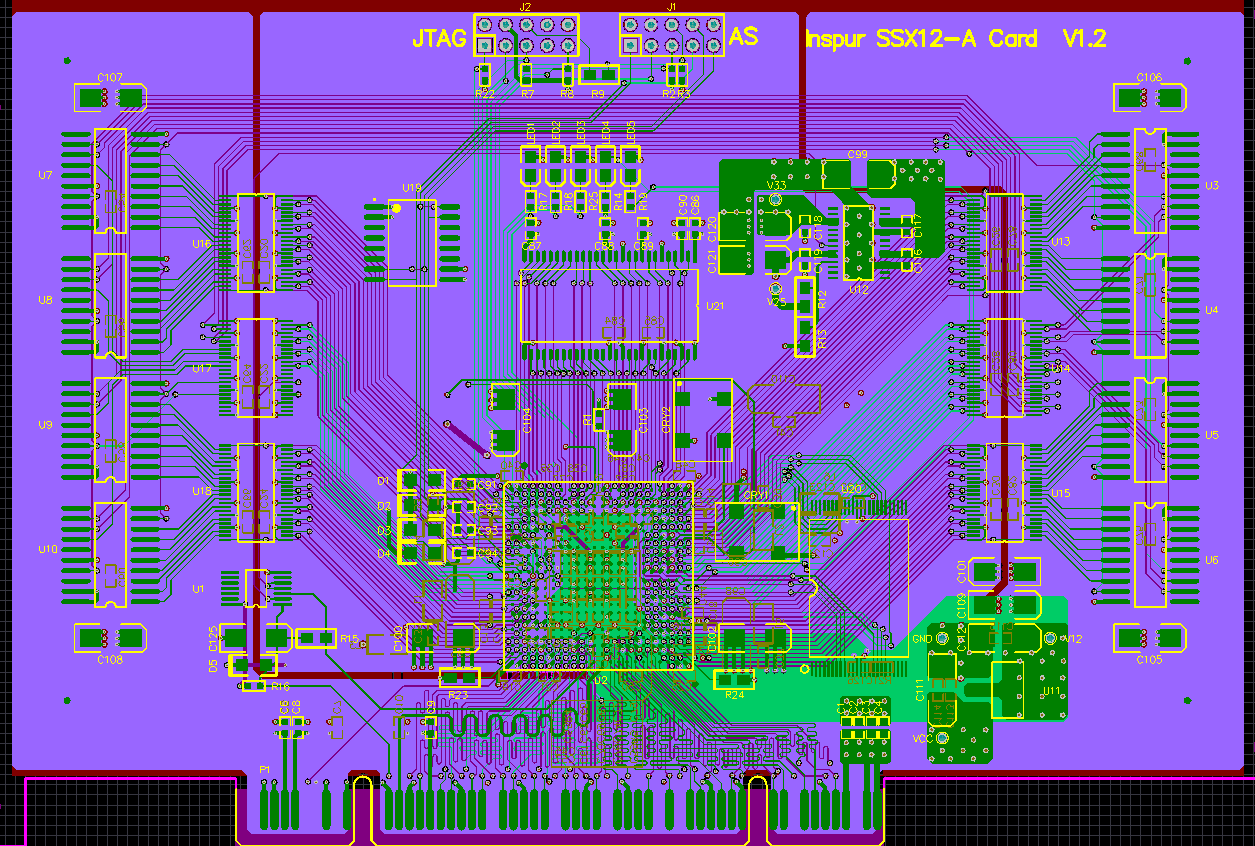

PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 6
Size: 114*183*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
