Vehicle Engine Control Units (ECU) PCB Layout and Assembly | Turnkey Electronics

Time:2020-08-24 14:33:06 Click:







Supplier: Shenzhen Grande Electronics
Application: Vehicle Engine Control Units (ECU) PCB Layout and Assembly | Turnkey Electronics Manufacturing Service

Software: PADS
Layers:8

Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Lead time: 10-12 days



Description

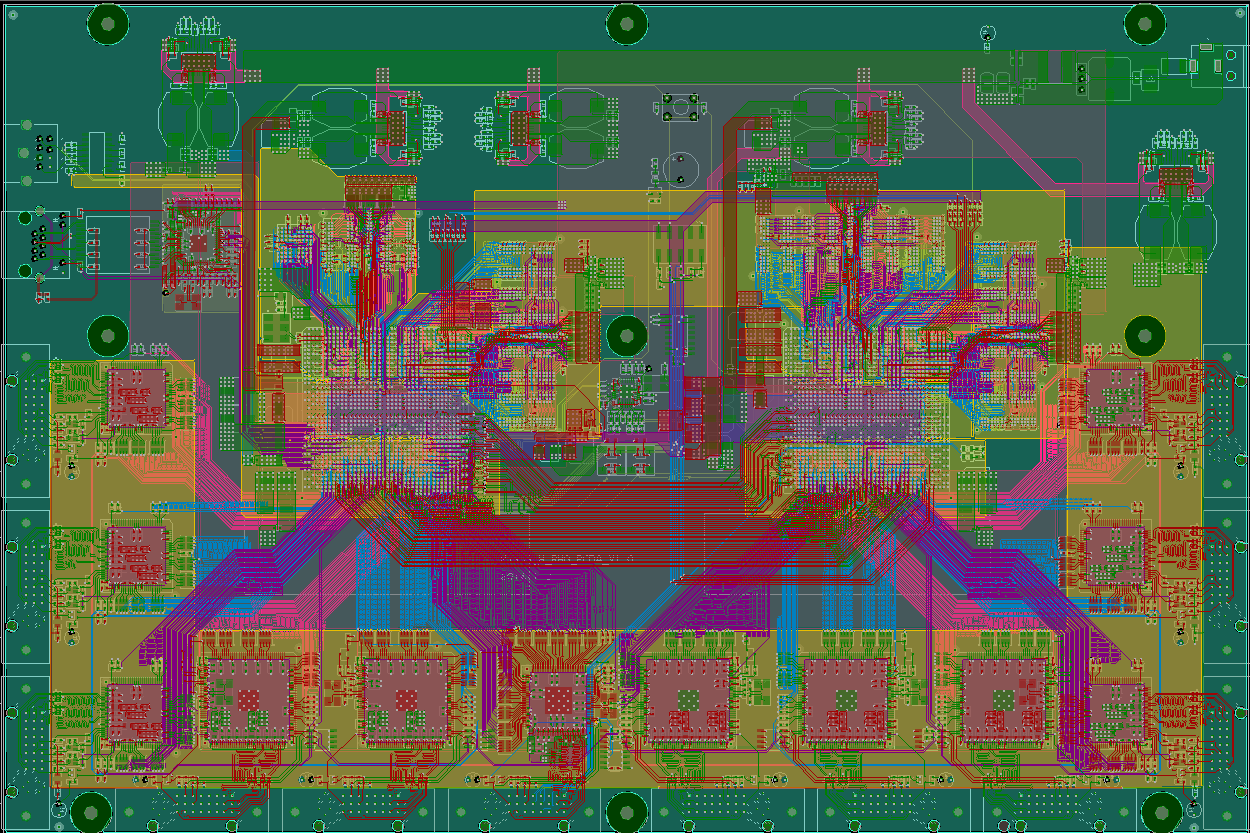

PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 4
Size: 196*178*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
