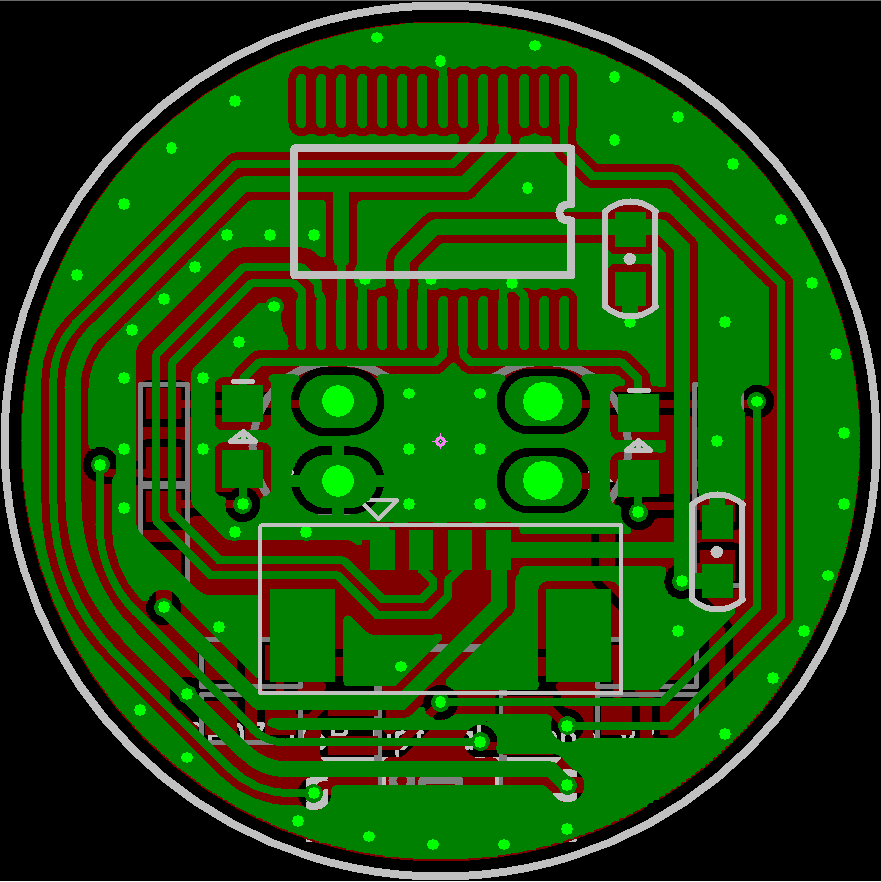

Automotive Camera Product PCB Layout Contract Manufacturing- EMS PCBA

Time:2020-08-18 11:01:57 Click:



Supplier: Shenzhen Grande Electronics
Application: Automotive Camera Product PCB Layout Contract Manufacturing- EMS PCBA

Software: PADS
Layers:2

Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Lead time: 6-7 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 4
Size: 96*147*1.2mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
