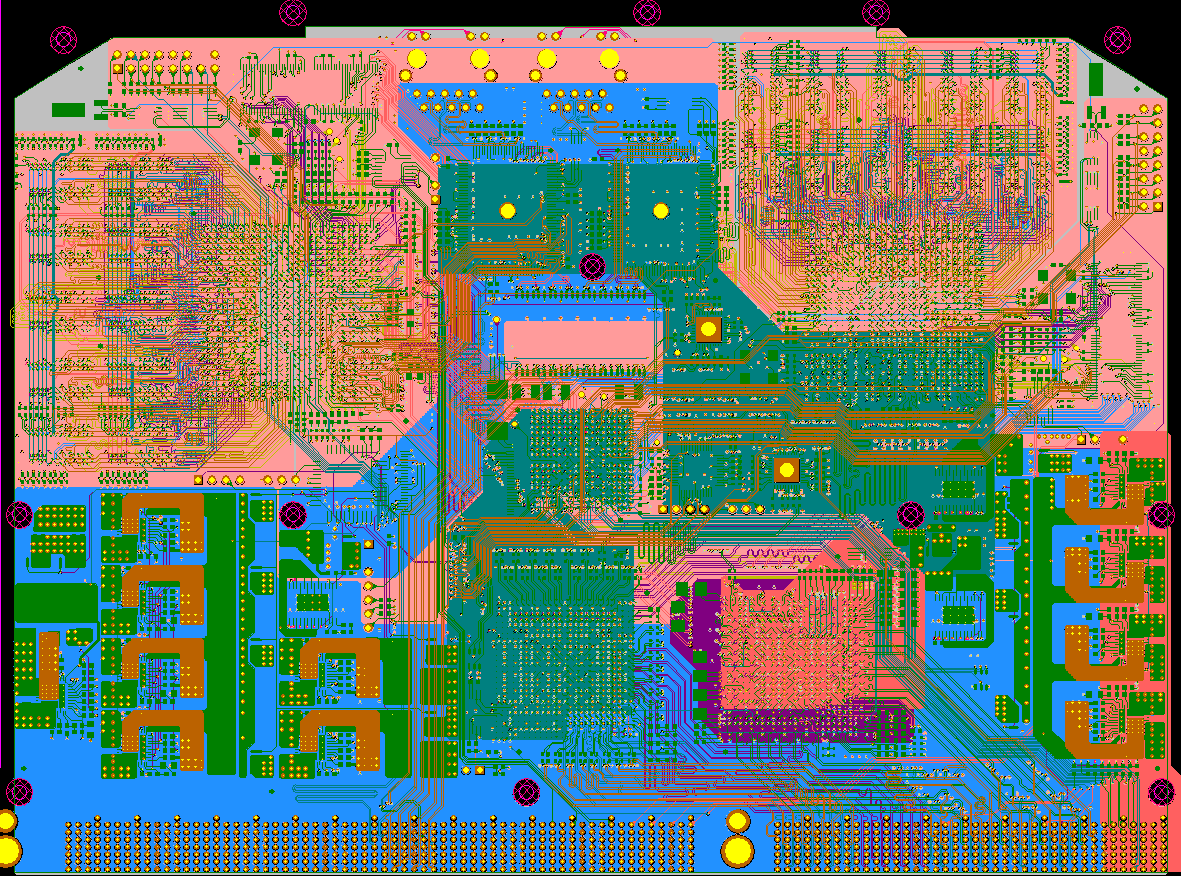

Aerospace PCB Layout - Electronics Manufacturer - Grande

Time:2020-08-12 09:14:24 Click:





Supplier: Shenzhen Grande Electronics
Application: Aerospace PCB Layout - Electronics Manufacturer - Grande

Software: PADS
Layers:4

Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Lead time: 10-12 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 4
Size: 168*267*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 2oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
