PCB Fabrication: Blind and Buried Via Boards

Time:2017-04-08 15:38:57 Click:

PCB Fabrication Blind and/or buried vias are similar to traditional, multi-layer boards with through-holes in that these via create connections between all the layers of the board. But one important difference is that blind and buried vias permit circuits of non-planar topography to be connected, which traditional multi-layer boards can’t do. This is an important difference and advantage since it economizes the use of space on the board by permitting only the required layer be connected.

Shenzhen Grande Electronic applies specific definitions to the various types of drilled interconnections.

 They are:

  ▪ Through-hole via: on that can be accessed from both external layers of the board
  ▪ Blind via: one that doesn’t go through the complete board yet can be accessed by one of the external layers of the board.
  ▪ Buried via: one that only makes connections with the inner layers of the board and is not accessible by any of the external layers

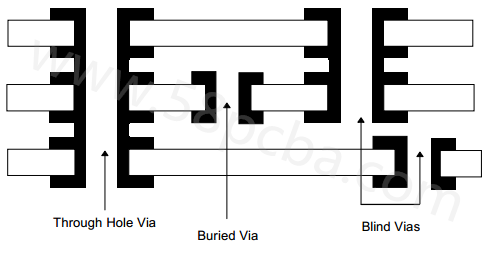

BBV Board with 6 Layers
