How can I merge Gerber files of PCB using Cam350 12.1V?

Time:2019-02-16 16:00:45 Click:

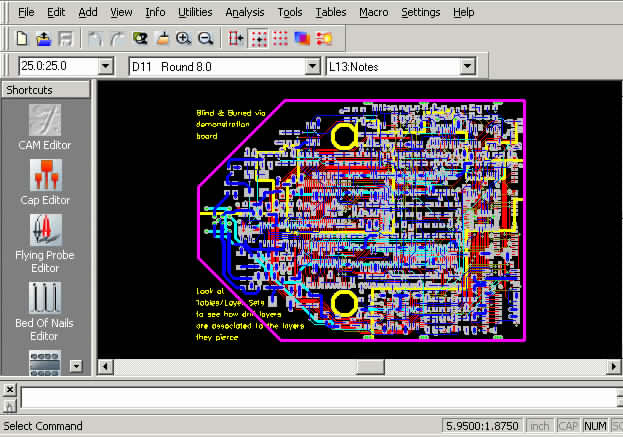

In order to merge Gerber files of PCB using Cam350 12.1v:



First of all, you should “import Gerber file” with Cam 350 12.1V correctly, then “File-Exprort-Gerber Data”. That’s to say, you will get the Gerber file with a “gbr” extension;



Secondly, opening the “PROTEL” and creating a new PCB file, clicking “File-Import”, choosing “Batch Gerber” and importing the Gerber file finally.



If you still have questions, please do feel free to ask Shenzhen Grande.
