PCB layout for 8-layer Spinner main board

Time:2018-05-16 16:25:57 Click:

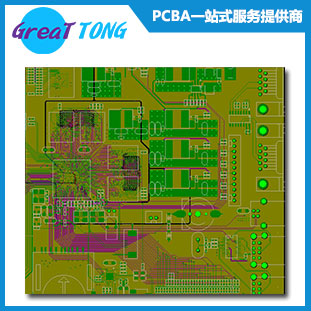

PCB layout for 8-layer Spinner main board

Supplier: Shenzhen Grande Electronic
Project:  Spinner main board
Software: PADS
Layers: 8
Features:
1, Various machine interfaced.
2, Equal-length for high speed traces.
Pin number: 5600 pins
Lead time: 10 days





【Description】
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 8
Size: 261*128*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4milVia:8mil
