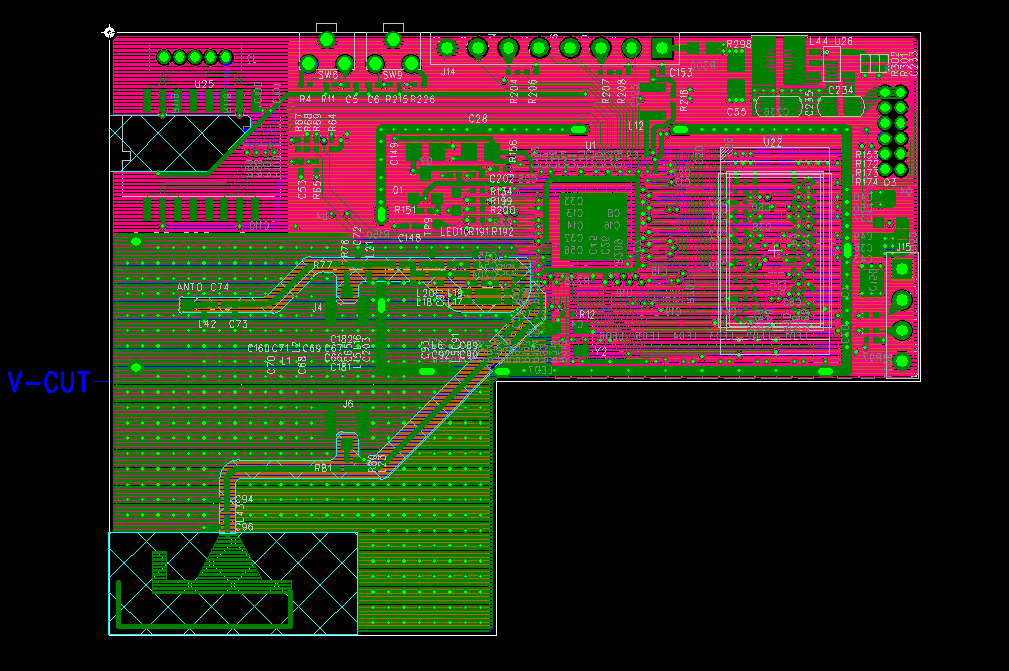

Vision Testing System Prototype PCB Layout - PCB & PCBA Manufacturer China

Time:2020-11-06 17:11:36 Click:





Supplier: Grande Electronics
Application: Vision Testing System Prototype PCB Layout - PCB & PCBA Manufacturer China

Software: PADS
Layers:6

Features:
1, Various machine interfaced.  High Speed Sewing Machine PCB Layout | Printed Circuit Board Manufacturer
2, Equal-length for high speed traces.
Lead time: 10-12 days



Description
PCB layout Features:
1, Huge board with perfect layout
2, Various machine interfaced, equal-length for high speed traces

PCB Fabrication:
Layers: 6

Size: 152*191*1.6mm
Surface Treatment: Im Au
Material: FR-4/HTg170, 1oz finished copper
Impedance Control Tolerance: +/-10%
Others: 4/4mil, Via:8mil
